About Product

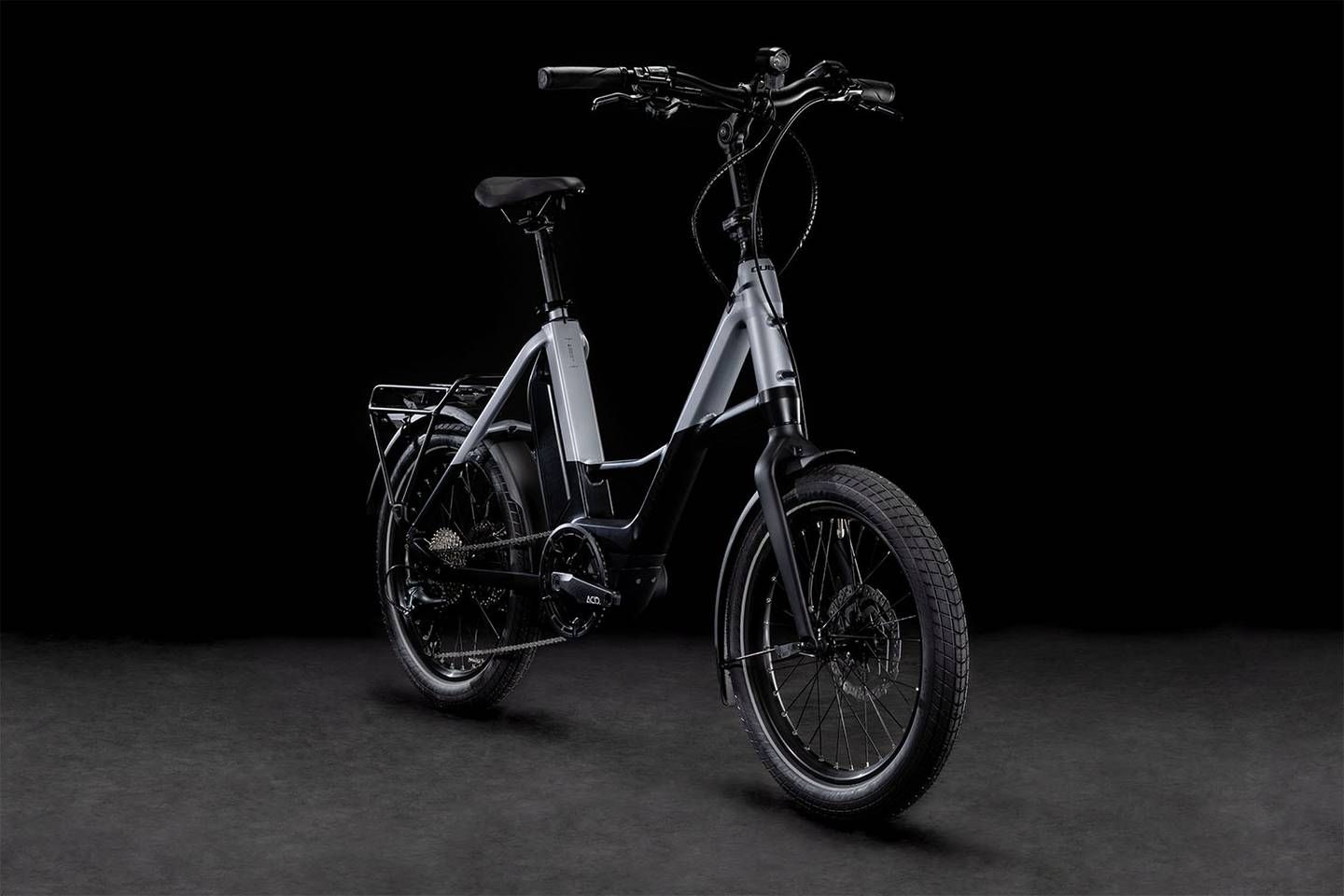

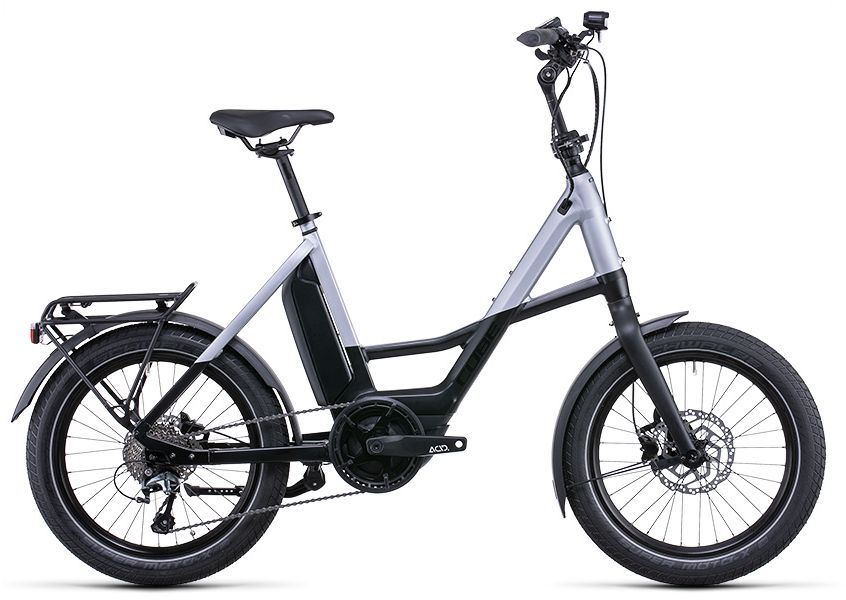

Getting from A to B doesn't need to involve sitting in a tin box - and here's the proof. The Compact Sport Hybrid's rugged, easy step-through design fits riders of all sizes and is easy to store and transport. Bosch's powerful Performance drive unit takes the sweat out of everyday riding, while Shimano's wide-ranging and reliable 10-speed Tiagra gears make light work of any route. Powerful hydraulic disc brakes ensure you can stop safely in all weathers. And the lighting system, mudguards, luggage carrier and kickstand ensure that the Compact Sport Hybrid will slot easily into your life. For work, for play, for any reason.

Features

• At CUBE we know that the simplest solutions are often the best.

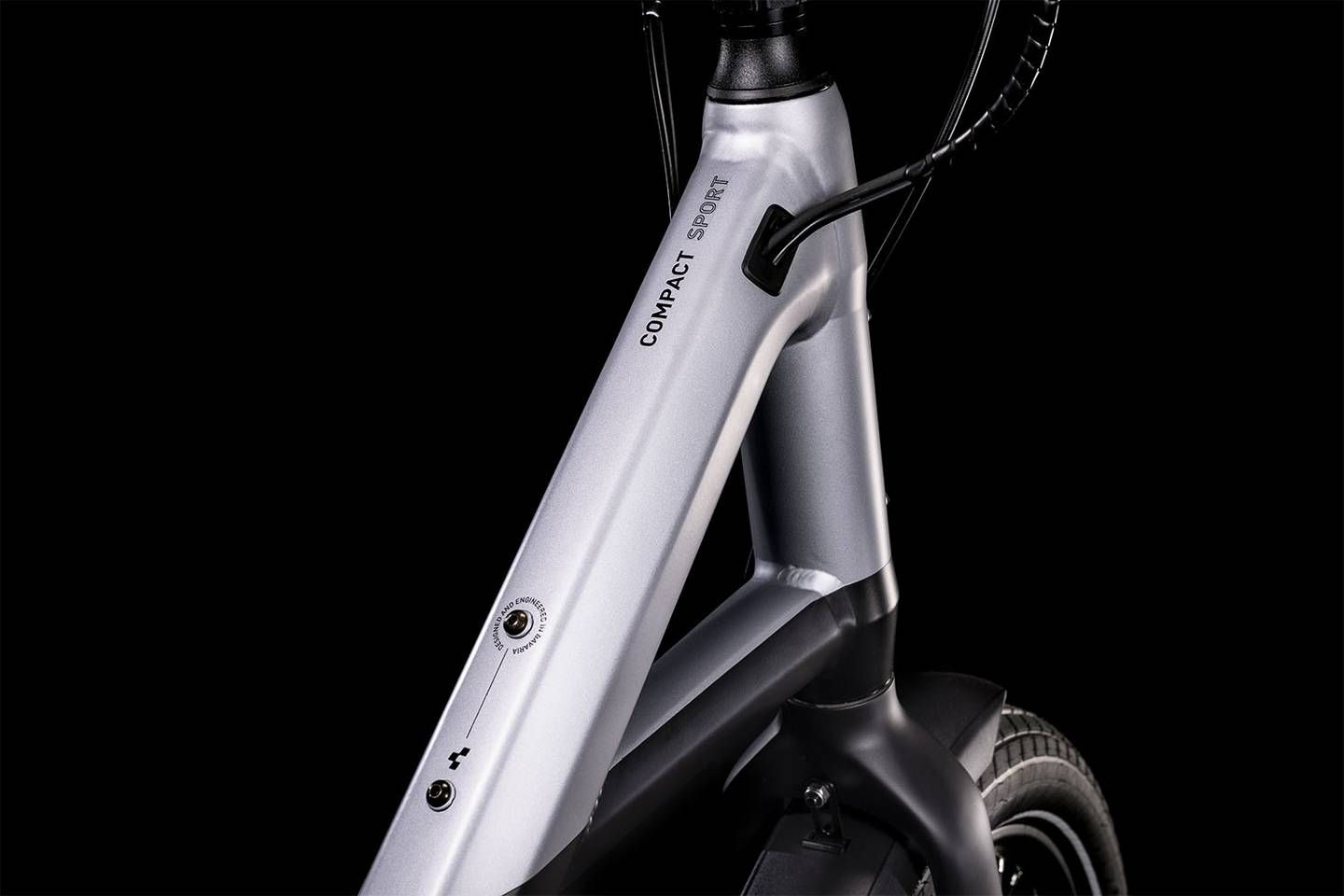

• The Compact Hybrid's cross-braced down tube is elegant, stiff and strong. It also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle.

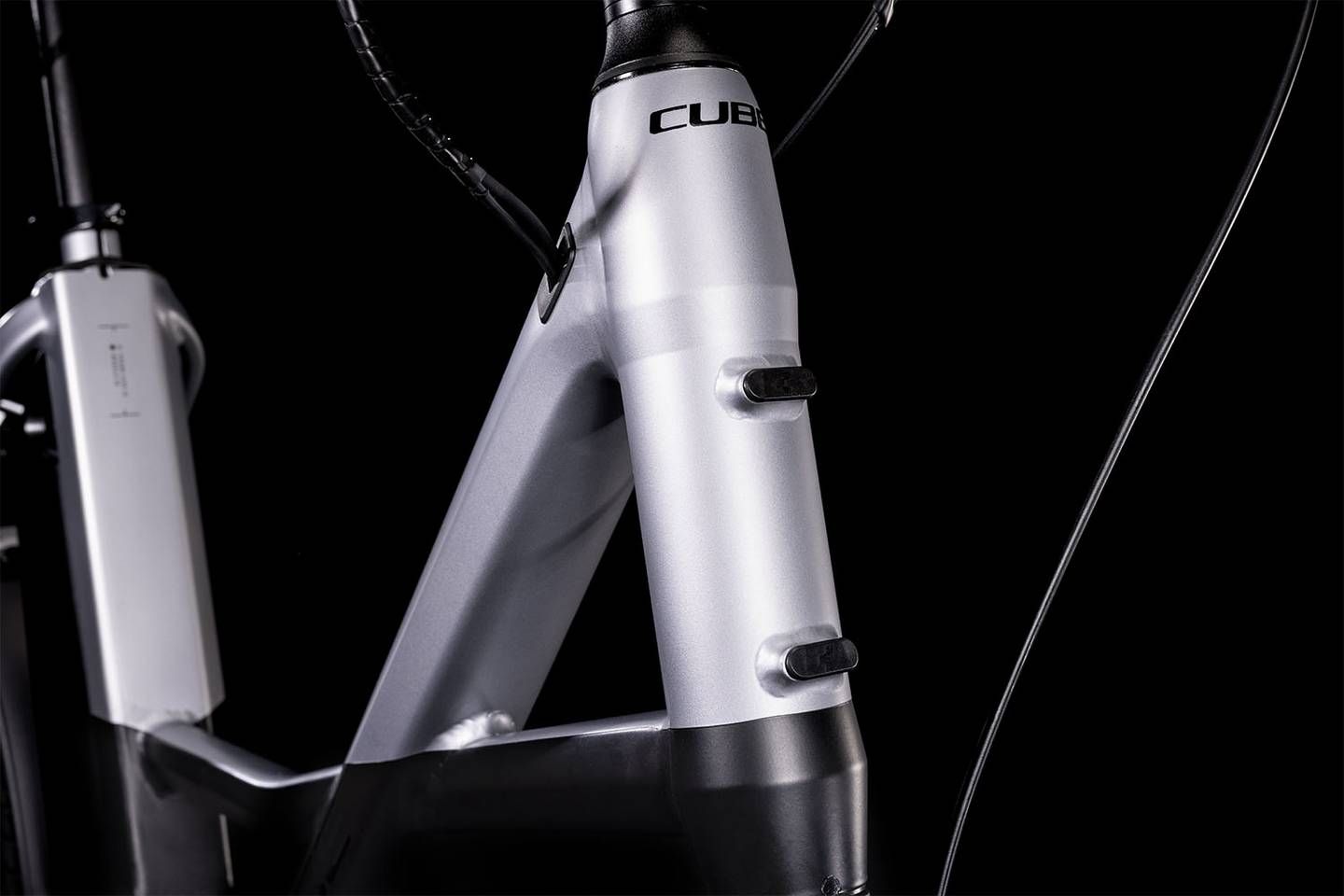

• There's a long head tube for accurate, safe steering.
• The smooth and powerful Bosch drive unit lives in a custom housing at the bottom of the frame, with the battery tucked out of the way of both luggage and rider.
• Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders.
• And the front luggage carrier increases carrying capacity and adds even more versatility.
• For commuting, for popping to the shops, for camping, for exploring. For you.

Specification

• FRAME: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
• SIZE: One Size
• FORK: Aluminium 20"
• DRIVE UNIT: Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
• BATTERY: Bosch PowerPack 500
• DISPLAY: Bosch Purion
• CHARGER: Bosch 2A
• BRAKE SYSTEM: Shimano BR-MT200, Hydr. Disc Brake (180/160)
• REAR DERAILLEUR: Shimano Tiagra RD-4700GS, 10-Speed
• SHIFTERS: Shimano Tiagra SL-4700
• CRANKSET: ACID E-Crank, 165mm, 44T
• CASSETTE: Shimano CS-HG500, 11-34T
• CHAIN: KMC X10
• FRONT HUB: Shimano HB-TX505, QR, Centerlock
• REAR HUB: Shimano FH-TX505, QR, Centerlock
• RIMS: CUBE EX30, 32H, Disc, Tubeless Ready
• TYRES: Schwalbe Super Moto-X, Double Defense, 62-406
• STEM: BySchulz Speedlifter Twist Pro SDS T15
• HANDLEBAR: CUBE Comfort Trail Bar, 680mm
• GRIPS: Natural Fit Comfort
• SEAT POST: Newmen Evolution, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm
• SADDLE: Natural Fit Sequence
• HEADSET: Cube H835D3, Semi-Integrated, Sealed bearing
• PEDALS: CUBE PP MTB

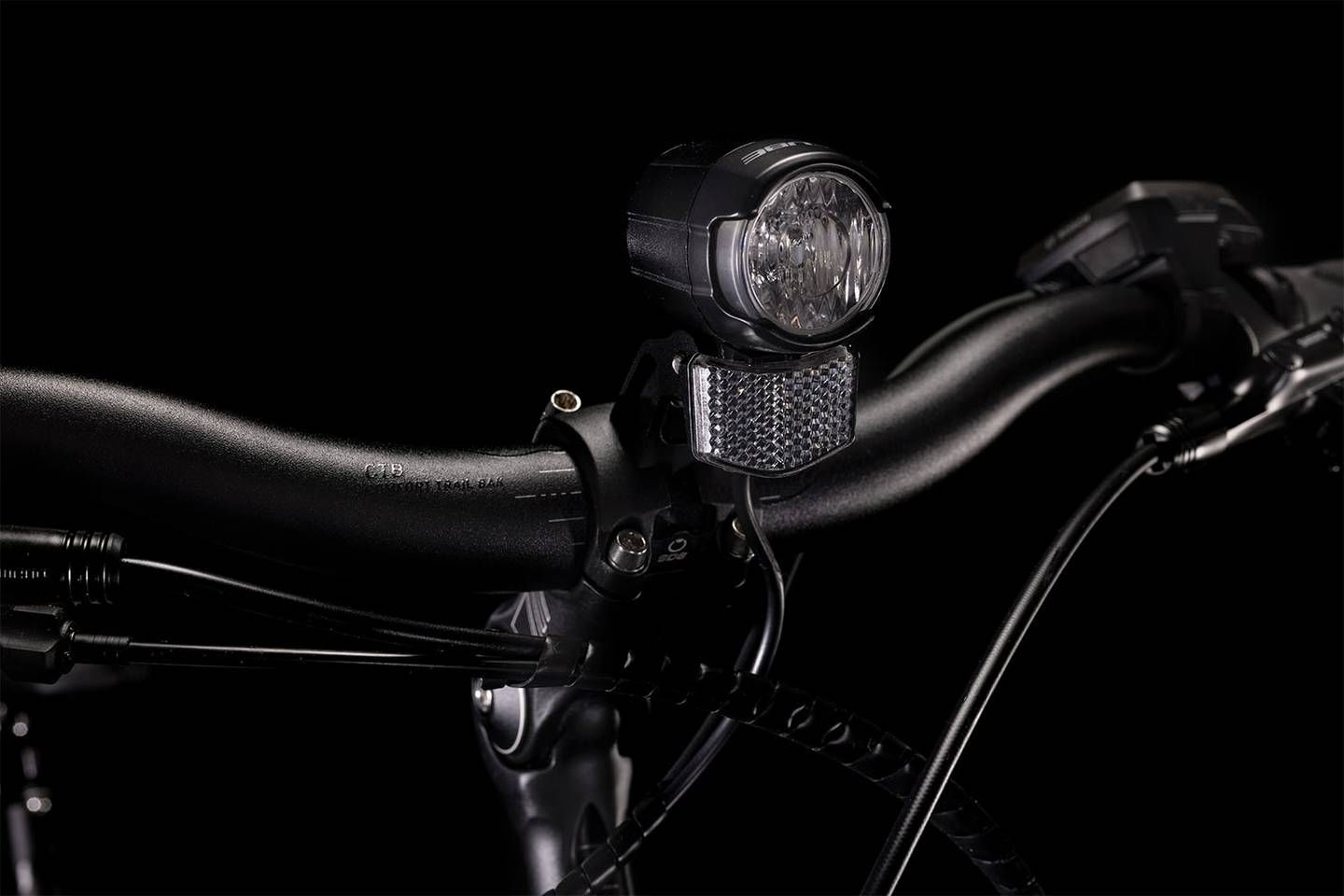

• FRONT LIGHT: CUBE Shiny 50 Lux, 12V, DC

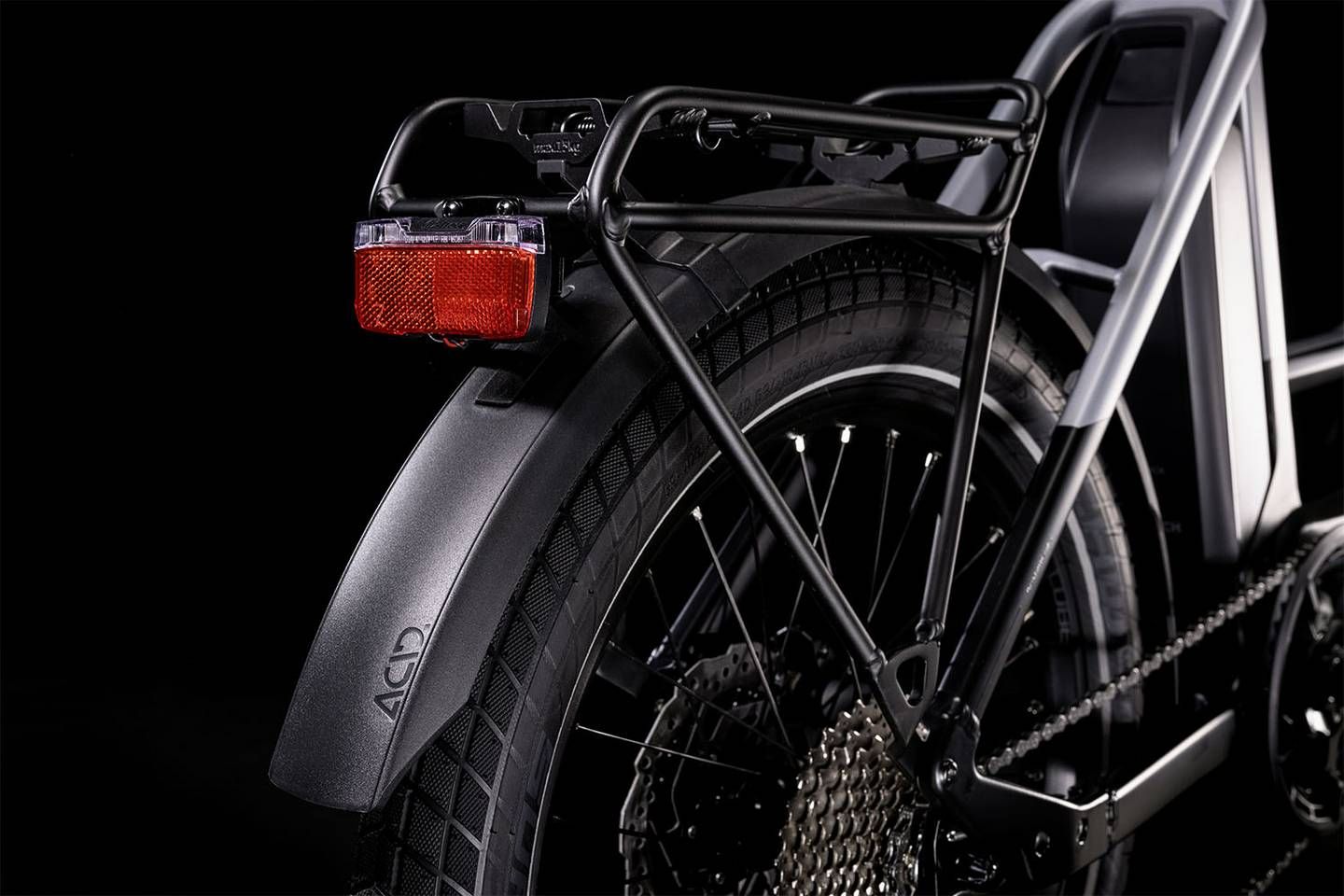

• REAR LIGHT: Herrmans H-Trace
• KICKSTAND: CUBE CenterStand
• MUDGUARDS: ACID 75 Compact
• BELL: Ring Bell
• CARRIER: ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
• WEIGHT: 23,2 kg

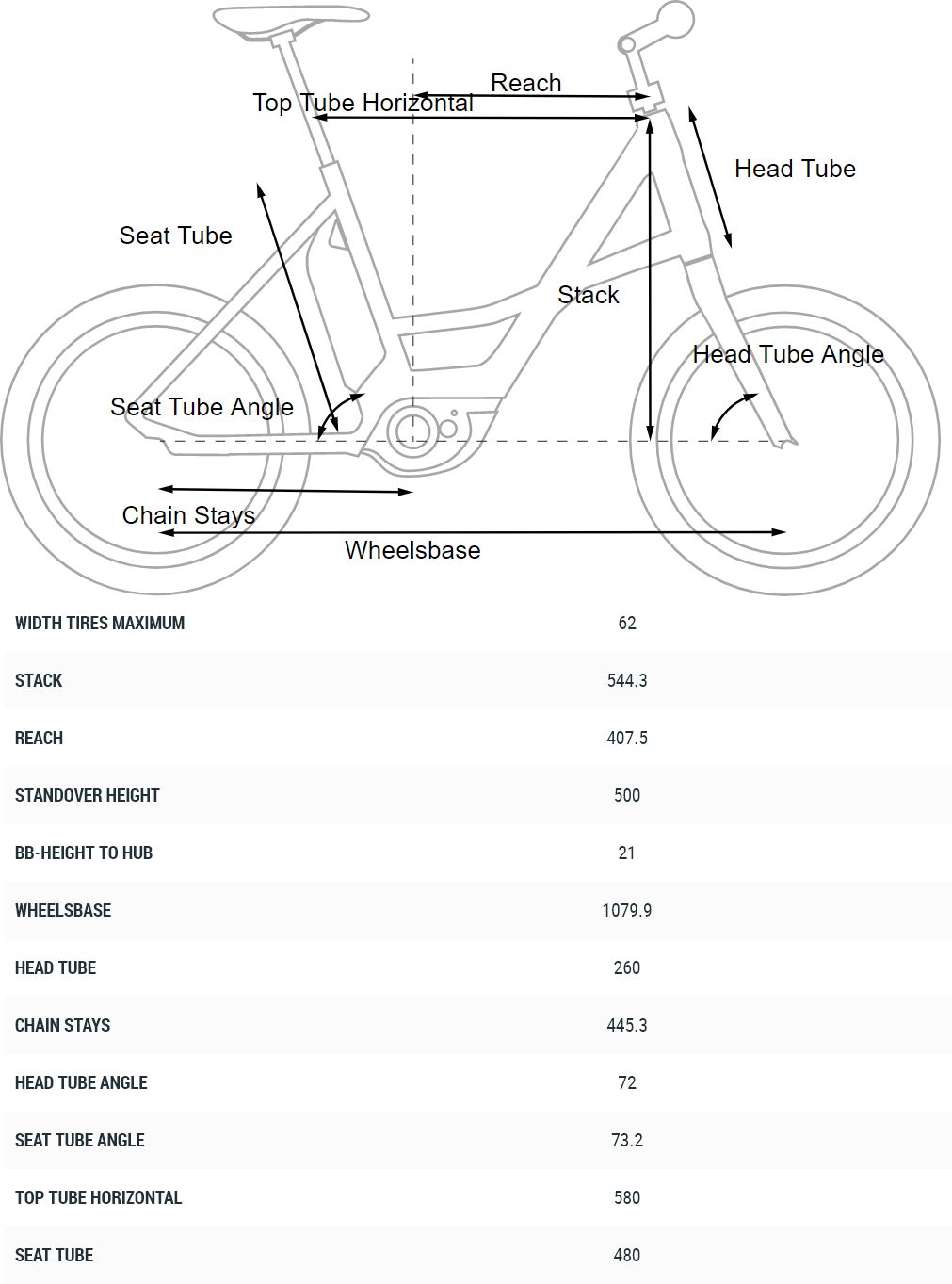

Geometry
