About Product

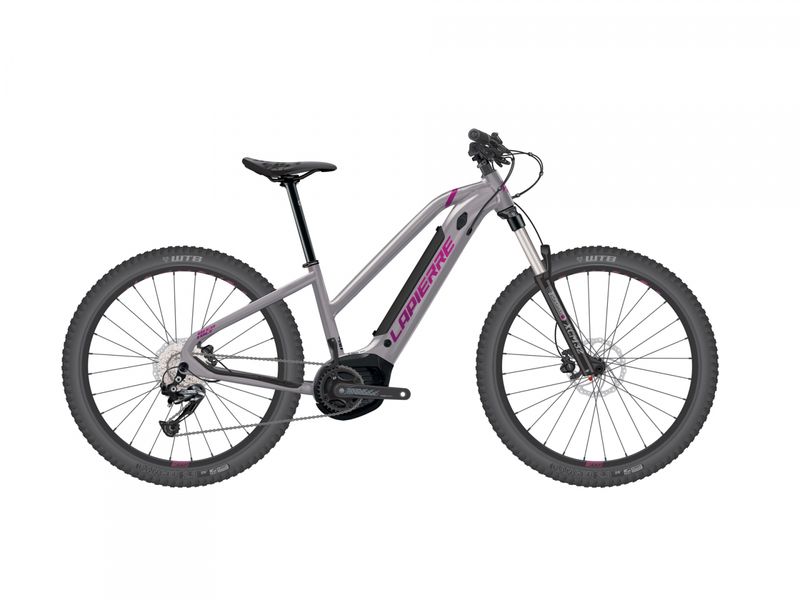

The Overvolt HT is an electric assist mountainbike that is easy to ride and capable of taking you wherever you want to go. With its lightweight aluminium frame and its gentle and progressive electric motor, the Overvolt HT offers comfort and control. Easy to master and comfortable thanks to its front suspension, this bike will improve your rides for maximum pleasure.

Specifications

• Brake Lever: Tektro HD-M275
• Brakes Front: Tektro TR180mm/180mm-24 6 bolts
• Fork: SR Suntour XCM 32 DS 15x100, 27,5' (S), 29' (M & L) 100mm travel
• Frame: Overvolt Bosch Supreme 5 alloy Mix
• Handlebar: XLC Alloy 6061 DB, Width: 720mm, Rise: 15mm, Ø: 31.8mm
• Headset: Feimin FP868PX 1.1/8"
• Model Year: 2023
• Pedals: XLC by VP
• Shift Lever: Shimano Alivio SLM3100 9s
• Stem: Alloy, 0°, Ø: 31.8mm, L: 45mm
• Battery Watts per Hour: 400Wh
• Display: Purion
• E-Bike: Yes
• Motor: Bosch Performance line "25kph" / Intube battery 400Wh / Purion display
• Grips: Velo Lock-On
• Saddle: DDK
• Seat Post: XLC Alloy, Ø: 31.6mm, L: 350mm
• Rim: Schürmann Yak25 25-584 (S) 25-622 (M/L) 32H Disc Rim 32H with Silver Eyelets
• Tyres: WTB Ranger Comp 2.3x27,5' (S) 29' (M & L)
• Chain: KMC e9 Sport Silver-black 9s
• Crankset: Lapierre Overvolt 170mm, 34T narrow wide
• Front Wheel Hub: DA210, 15x100, 32H 6 bolts
• Rear Derailleur: Shimano Alivio RD-M3100, 9-S Shadow
• Rear Wheel Hub: DA210, 4 sealed bearings, boost 12x148, 32H 6 bolts
• Sprocket: Shimano HG200, 9-speed, 11-36T
• Accessories: Compact Charger 2A

Geometry
