About Product

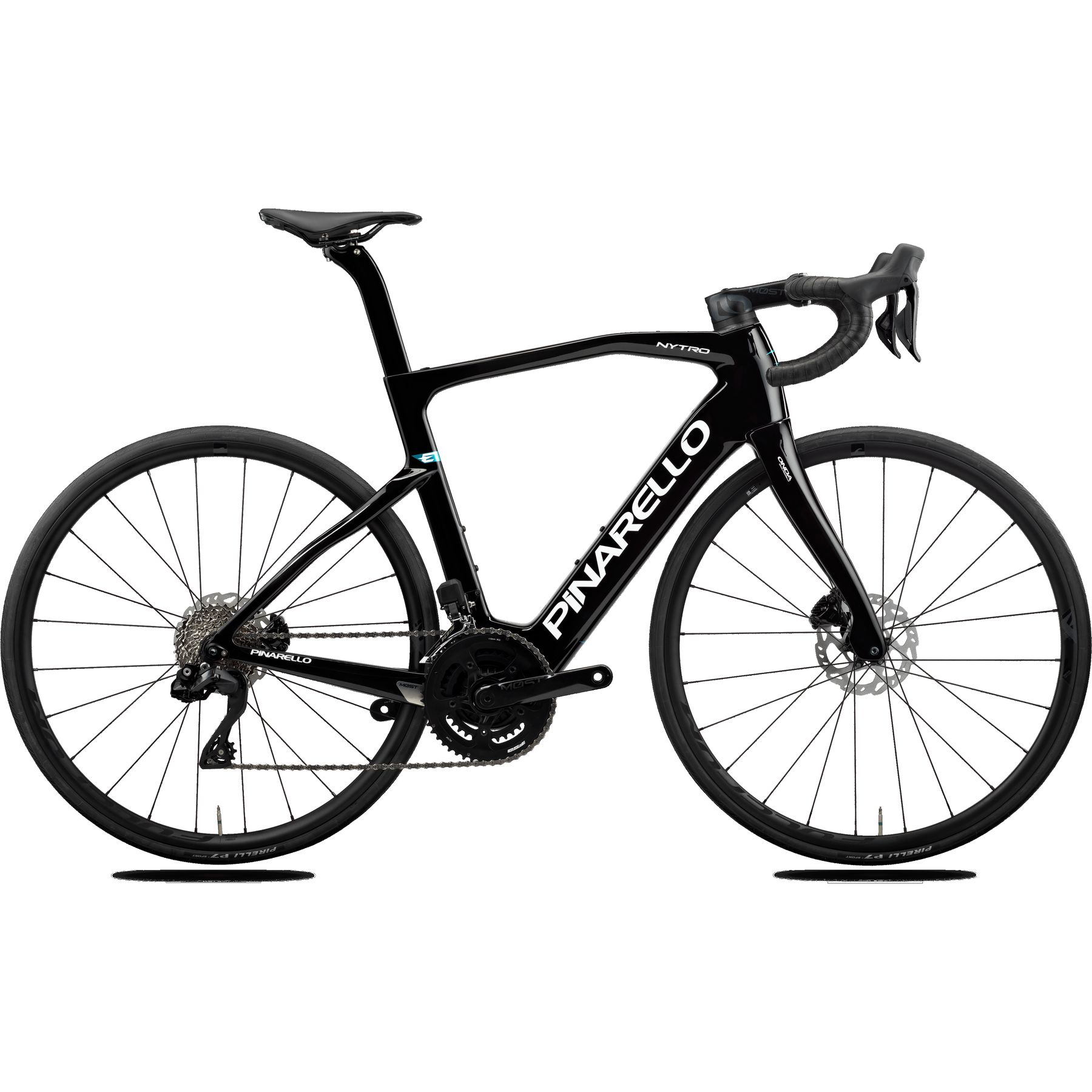

The new Nytro E-line opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike.

Features

• CARBON T900 UD: The right balance between reactivity, dampening capabilities and lightness for competition.
• ONDA FORK: A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
• ASYMMETRIC FRAME: Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

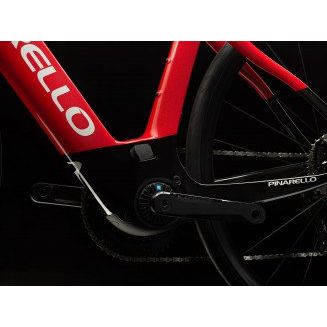

• TQ-HPR50 DRIVE UNIT: The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.

Specifications

• FRAME: TorayCa T700 UD, TiCR™ Cable Routing
• FORK: nytro onda carbon fork with forkflap™, tapered head tube
• CRANKSET AND CHAINRINGS: Shimano 105 Di2 12S
• REAR DERAILLEUR: Shimano 105 Di2 12S
• CASSETTE: Shimano 105 Di2 12S
• MOTOR: TQ-HPR50 Drive Unit
• BATTERY: 360 Wh Integrated Battery
• DISPLAY: Integrated and Compatible with Ant+ Bike Computers
• FRONT BRAKE DISC: Shimano 105 2 pistons caliper, 160mm rotor
• REAR BRAKE DISC: Shimano 105 2 pistons caliper, 160mm rotor
• HANDLEBAR: MOST Jaguar XA TiCR
• STEM: MOST Tiger Aero Alu TiCR
• WHEELSET DISC: Fulcrum Racing 500
• AXLES DISC: Pinarello Axle 12x100 & 12x142, Tool Free Removal

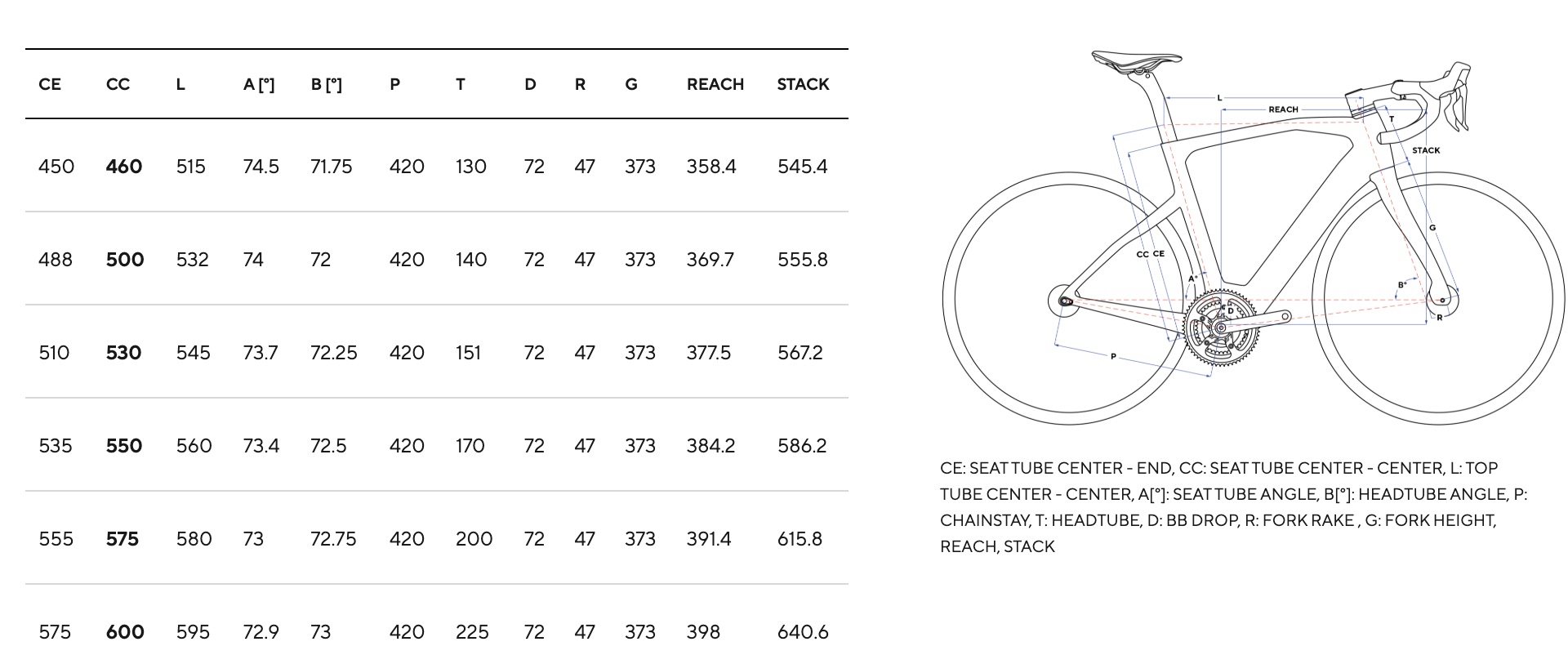

Geometry
