About Product

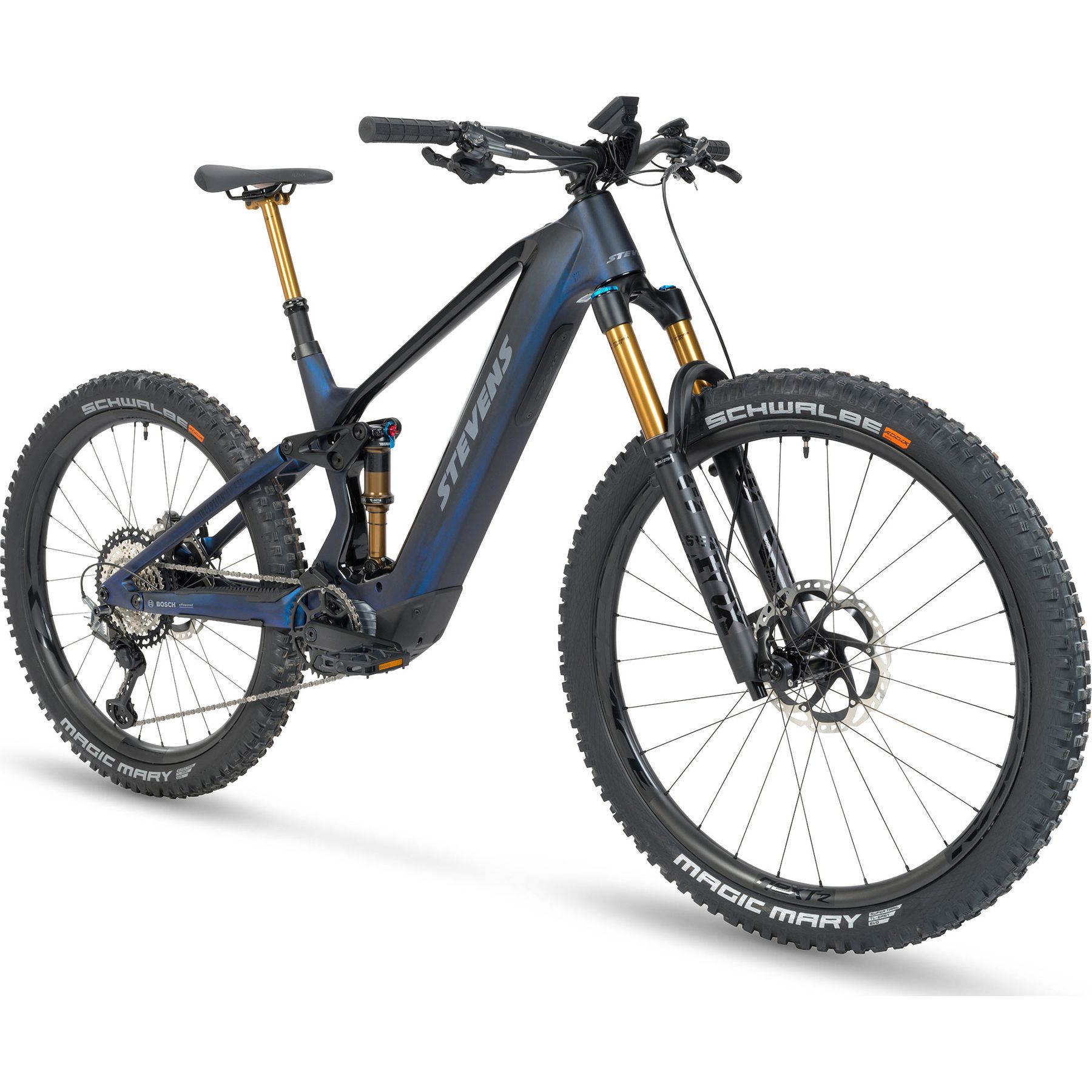

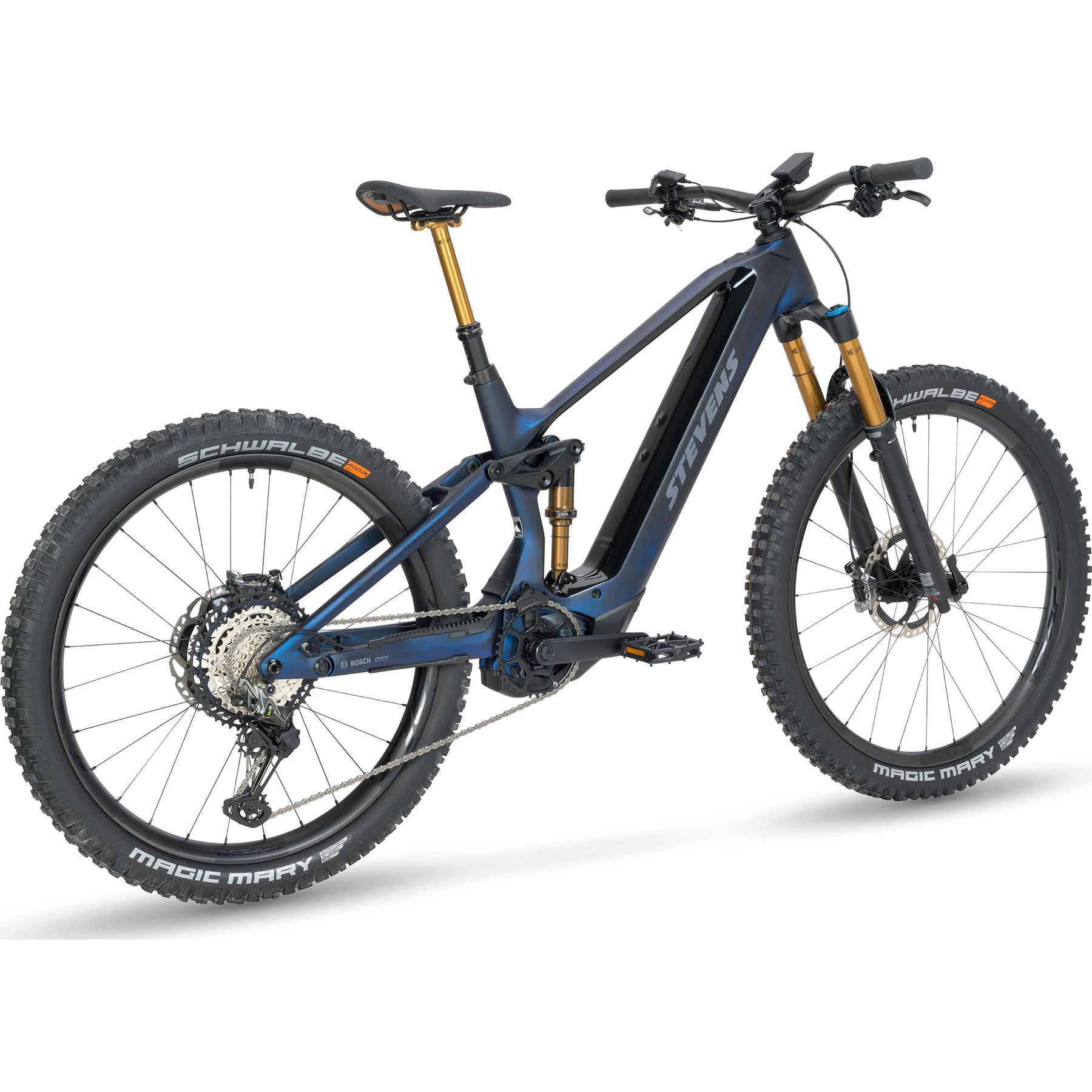

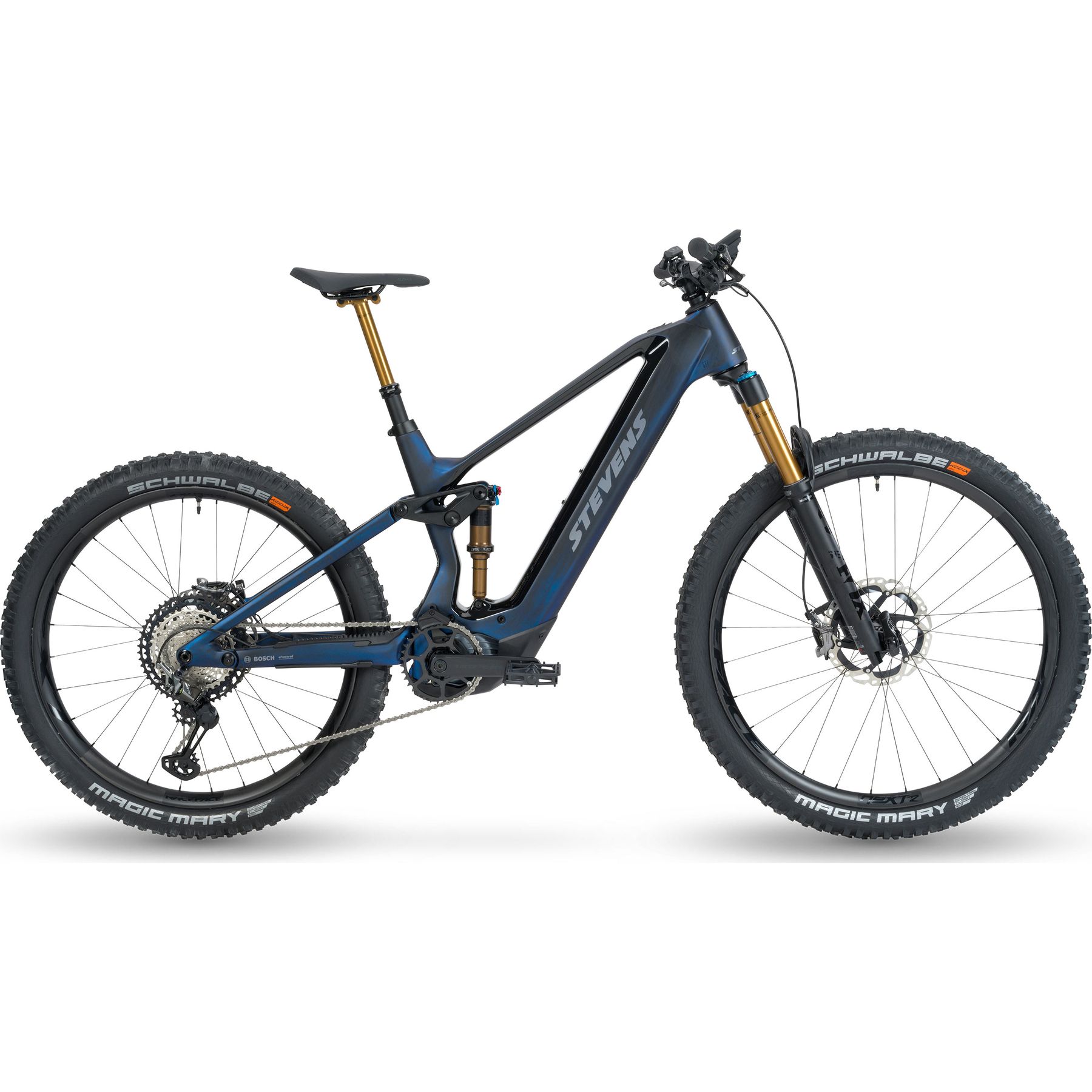

Only the best is good enough for the top model in our E-Inception E-All-Mountain range, which has been honoured with multiple test wins. Made for uncompromising racing and performance-hungry E-MTB enthusiasts, the AM 9.7.1 GTF is powered by Bosch's exclusive Performance Line CX Race Limited Edition drive unit.

The drive unit, which is only available in limited numbers and supplied to selected manufacturers, utilises Bosch's Race mode, which was specially developed for E-MTB racing and is only available for the Performance Line CX Race Limited Edition motor. It delivers extremely powerful, direct support of up to 400 per cent of your own pedal power and therefore maximum performance on the steepest and most demanding uphill sections. The motor power is supplied by a permanently installed, high-capacity 750 Wh battery for practically limitless riding fun and plenty of range, even on challenging terrain. In addition, and as befits a race model, the AM 9.7.1 GTF is equipped with the finest high-end components. These include race-proven parts such as Shimano's exclusive XTR high-end MTB 12-speed drivetrain with powerful XTR 4-piston brakes or the sophisticated 150 mm Fox suspension, consisting of the 36 Float Factory fork and Float DPS Factory rear shock.

Features

• Race-orientated all-mountain E-Fully with top specification
• Exclusive Bosch Performance Line CX Race Limited Edition drive unit with special race mode for extreme support and superior performance even in the most challenging uphill situations
• Classy 150mm chassis from Fox: 36 Float Factory e optimized/Float DPS Factory
• Hama USB-C smartphone charging socket on the top tube
• High-end components from Acros, Race Face, Shimano

Specifications

• Frame: Carbon SL HMF
• Fork: Fox 36 Float Factory E-Optimized
• Headset: Acros Blocklock Taper 1 1/8"-1 1/2"
• Shock absorber: Fox Float DPS Factory
• Brake front: Shimano XTR
• Brake rear: Shimano XTR
• Brake disc: Shimano RT-MT905
• Crankset: Oxygen E-Scorpo
• Motor sprocket: SRAM Eagle
• Derailleur rear: Shimano XTR Shadow+
• Chain: Shimano CN-M8100
• Cassette: Shimano Deore XT
• Pedals: MTB Flatpedal Reflex
• Engine: Bosch G4 Performance Line CX Race
• Battery: Bosch PowerTube 750
• Charger: Bosch 4A charger
• System wheel front: Race Face Next-R 36 Carbon
• System wheel rear: Race Face Next-R 36 Carbon
• Tire front: Schwalbe Magic Mary Evolution
• Tire rear: Schwalbe Magic Mary Evolution
• Handlebar: Race Face Next-R Carbon
• Stem: Race Face Turbine-R
• Saddle: Fizik Terra Alpaca
• Seatpost: Fox Transfer Factory
• Shift lever right: Shimano XTR
• Brake lever: Shimano BL-M9120
• Display: Bosch Kiox 300
• Weight: 23.7 kg
• Max. Rider's weight: 140 kg
• Color(s): Blue Black
• Sizes: 29"/27.5" - 16", 18", 20", 22"
