About Product

Light and playful for maximum fun on the trail - that was the specification for the development of the E-Maverick Light Assist E-fully series. The modern geometry of the high-tech carbon frame combined with 29-inch wheels result in a light and playful bike that feels just as comfortable on winding single trails as it does in fast downhill sections. The way uphill is made all the more carefree by the compact, powerful TQ-HPR50 Light Assist drive with a maximum of 50 Nm of torque. The E-Maverick AM 9.4.3 uses the finest components from Shimano, SRAM, RockShox and Race Face. The result: an unbelievably low total weight of less than 17 kilograms, only slightly above that of a classic mountain bike, which makes it possible to conquer every trail with even more flow. In other words, a premium all-mountain bike that is really up to all challenges.

Features

• Capable Light-Assist all-mountain full-suspension e-MTB w/ high-tech carbon frame and 29" wheels
• Ultra-light and compact TQ-HPR50 Light Assist drive unit
• Downtube integrated 360 Wh battery, extendable with optional 160 Wh range extender
• Fine 140 mm RockShox suspension with Pike Ultimate fork & Ultimate RCT rear shock
• SRAM X0 Eagle AXS Transmission drivetrain for quick, electronic shifting performance

Specifications

• Frame: Carbon SL HMF
• Fork: RockShox Pike Ultimate
• Headset: Acros Blocklock Taper 1 1/8"-1 1/2"
• Shock absorber: Rock Shox Deluxe Ultimate RCT
• Brake front: Shimano XTR
• Brake rear: Shimano XTR
• Brake disc front: Shimano RT-MT800
• Brake disc rear: Shimano RT-MT800
• Crankset: FSA CK-702/IS
• Motor sprocket: SRAM MTB
• Derailleur rear: SRAM X0 Eagle Transmission
• Chain: SRAM X01 Eagle Transmission
• Cassette: Sram X0 1295 Eagle
• Pedals: MTB Flatpedal Reflex
• Engine: TQ HPR50
• Battery: TQ HPR-BAT01
• Charger: TQ 4A charger
• System wheel front: DT Swiss HXC 1501 Spline One
• System wheel rear: DT Swiss HXC 1501 Spline One
• Tires: Schwalbe Wicked Will Evolution
• Tubes: Schwalbe Aerothan
• Handlebar: Race Face Next-R Carbon
• Stem: Race Face Turbine-R
• Saddle: Fizik Terra Alpaca
• Seatpost: BikeYoke Revive
• Shift lever right: SRAM AXS Pod Controller
• Brake lever: Shimano BL-M9120
• Display: TQ HPR Display
• Bell: STEVENS D85 bell
• Weight: 16.5 kg
• Max. Rider's weight: 140 kg
• Color(s): Dark Lava Red
• Sizes: 29" - R1, R2, R3, R4, R5

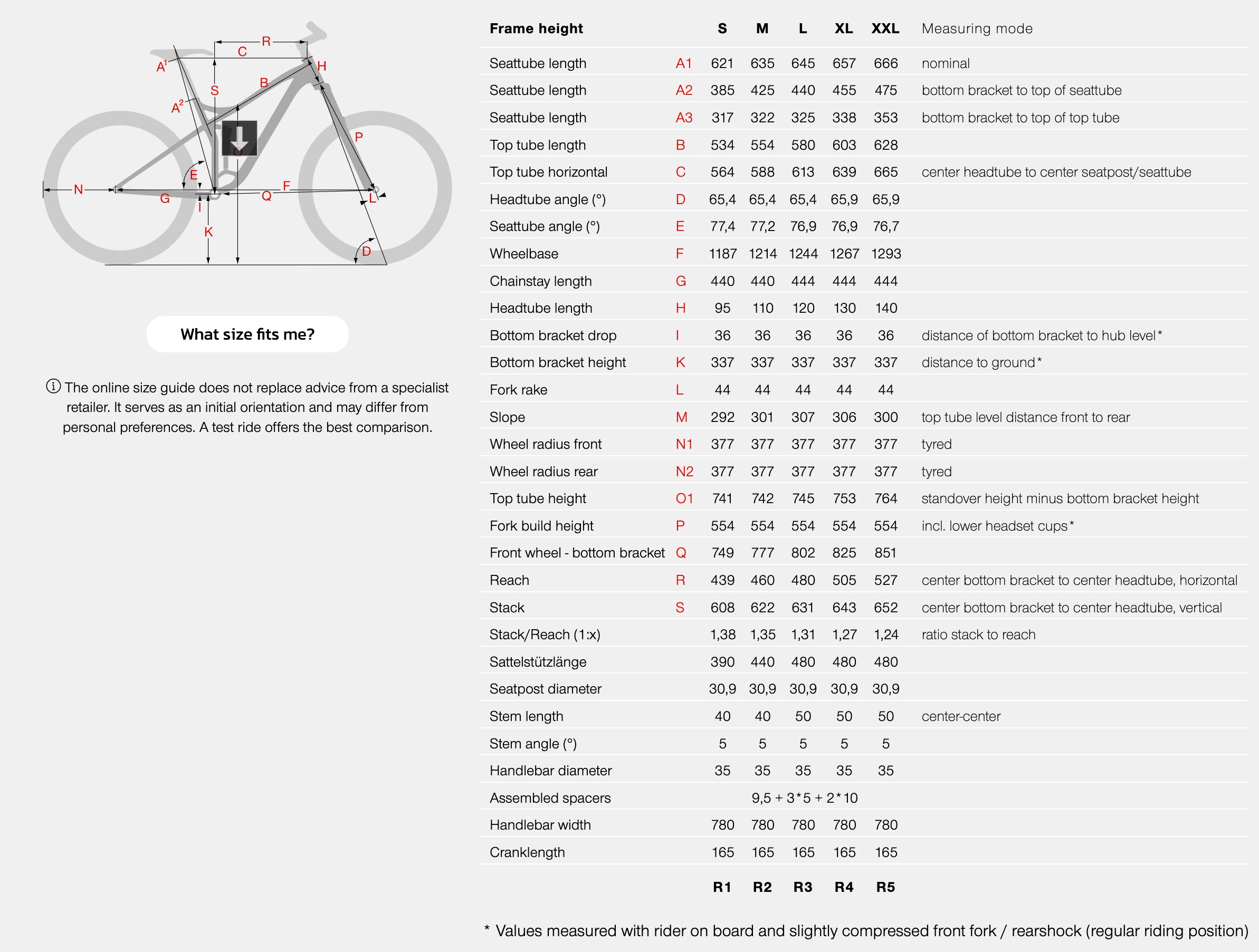

Geometry
