About Product

The entry into the E-Triton world, the 5.5.1, shines with an unobtrusive frame design and semi-integrated 545 Wh Bosch PowerPack battery. The frame is designed without a battery cover, which makes removing the battery child's play. The tried-and-tested Bosch Performance Line Drive Unit with 75 Nm torque provides plenty of forward drive.

Features

• Affordable all-round pedelec with 545 Wh battery
• Smooth Bosch Performance Line drive unit
• Load-capable designed frame tubes made of aluminium 6061
• Sturdy air suspension fork w/ thru-axle & lockout
• Reliable 10-speed drivetrain

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour NCX-D Air LO
• Headset: STEVENS AH Taper 1 1/8"-1 1/2"
• Brake front: Tektro Volans
• Brake rear: Tektro Volans
• Brake disc front: Tektro TR180-45A
• Brake disc rear: Tektro TR160-45A
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS E-MTB
• Derailleur rear: Sunrace RDMS103
• Chain: Shimano CN-E6090-10
• Cassette: Shimano Deore XT
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G3 Performance Line
• Battery: Bosch PowerPack 545
• Charger: Bosch 4A charger
• Hubs rear: Shimano Deore XT
• Hubs front: Shimano Deore XT
• Rims: Oxygen RM-26 Disc SL
• Tires: Schwalbe Marathon
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen E-Scorpo
• Saddle: Selle Royal ON Male
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Shimano Deore
• Brake lever: Tektro HD-T532
• Display: Bosch Intuvia 100
• Headlight: B M IQ-XS Friendly
• Taillight: B M Shine Evo
• Carrier: Racktime Shine Evo RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 25.9 kg
• Max. Rider's weight: 140 kg
• Color(s): India Ink
• Sizes: G 52, 55, 58, 61 cm

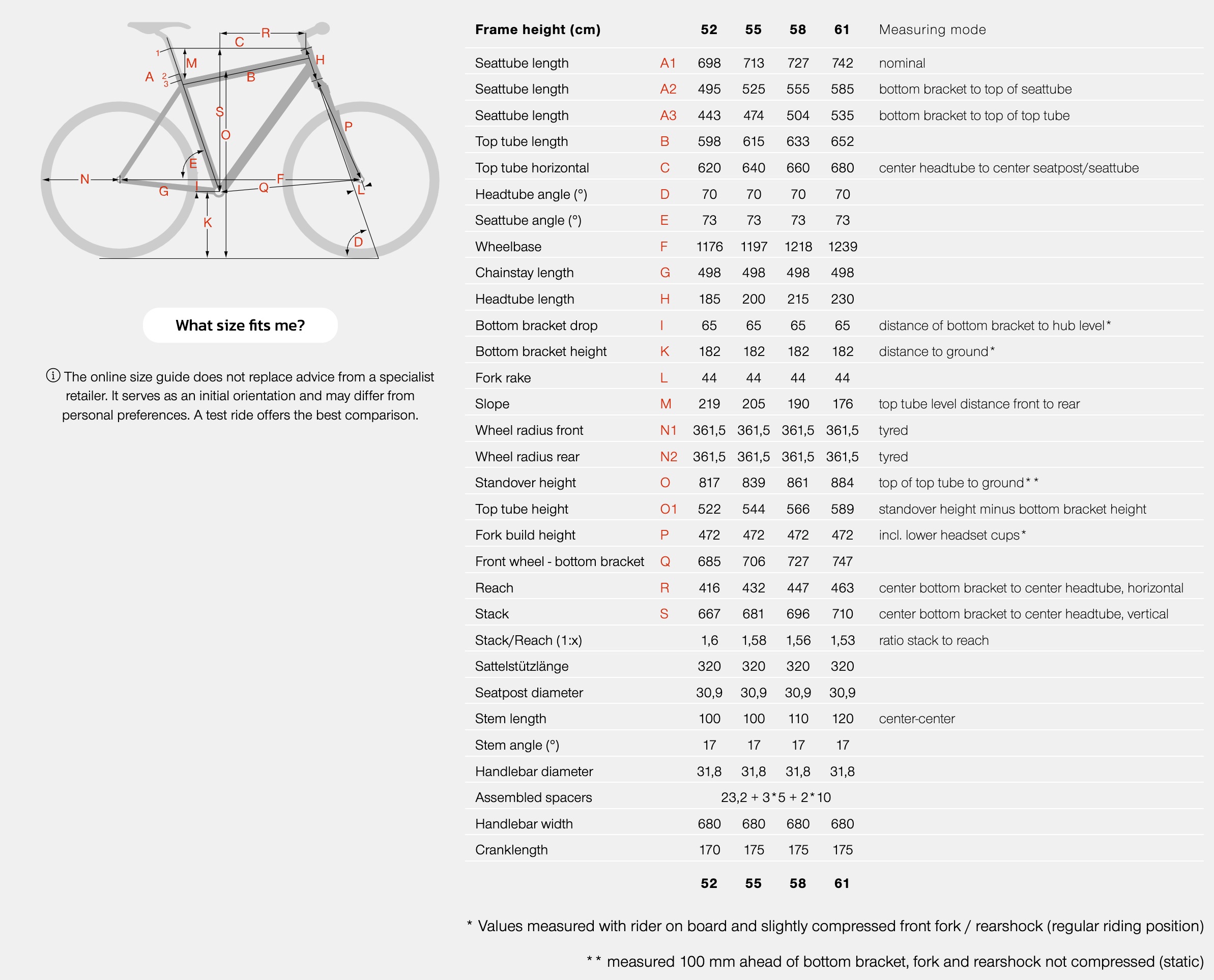

Geometry
