About Product

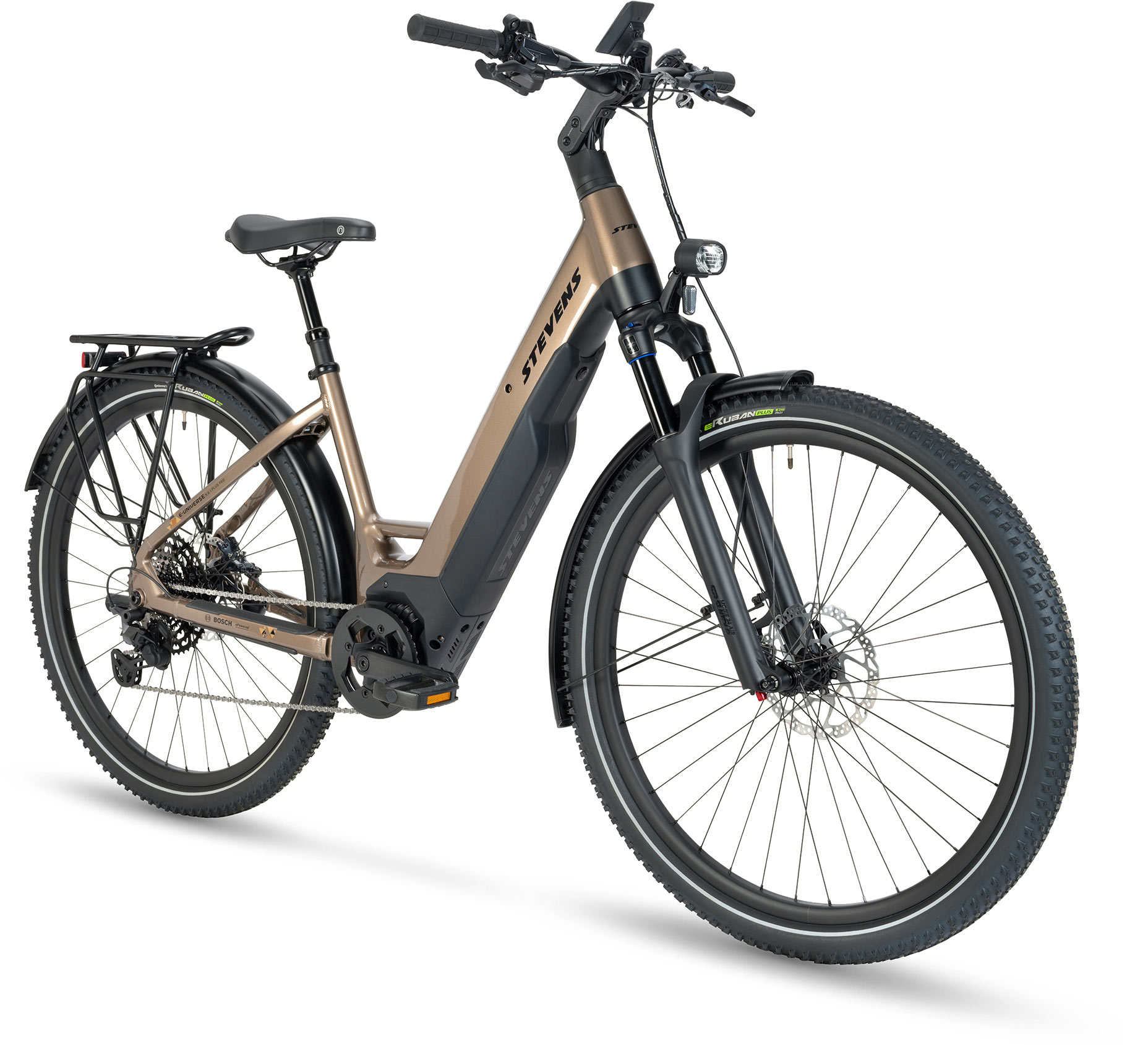

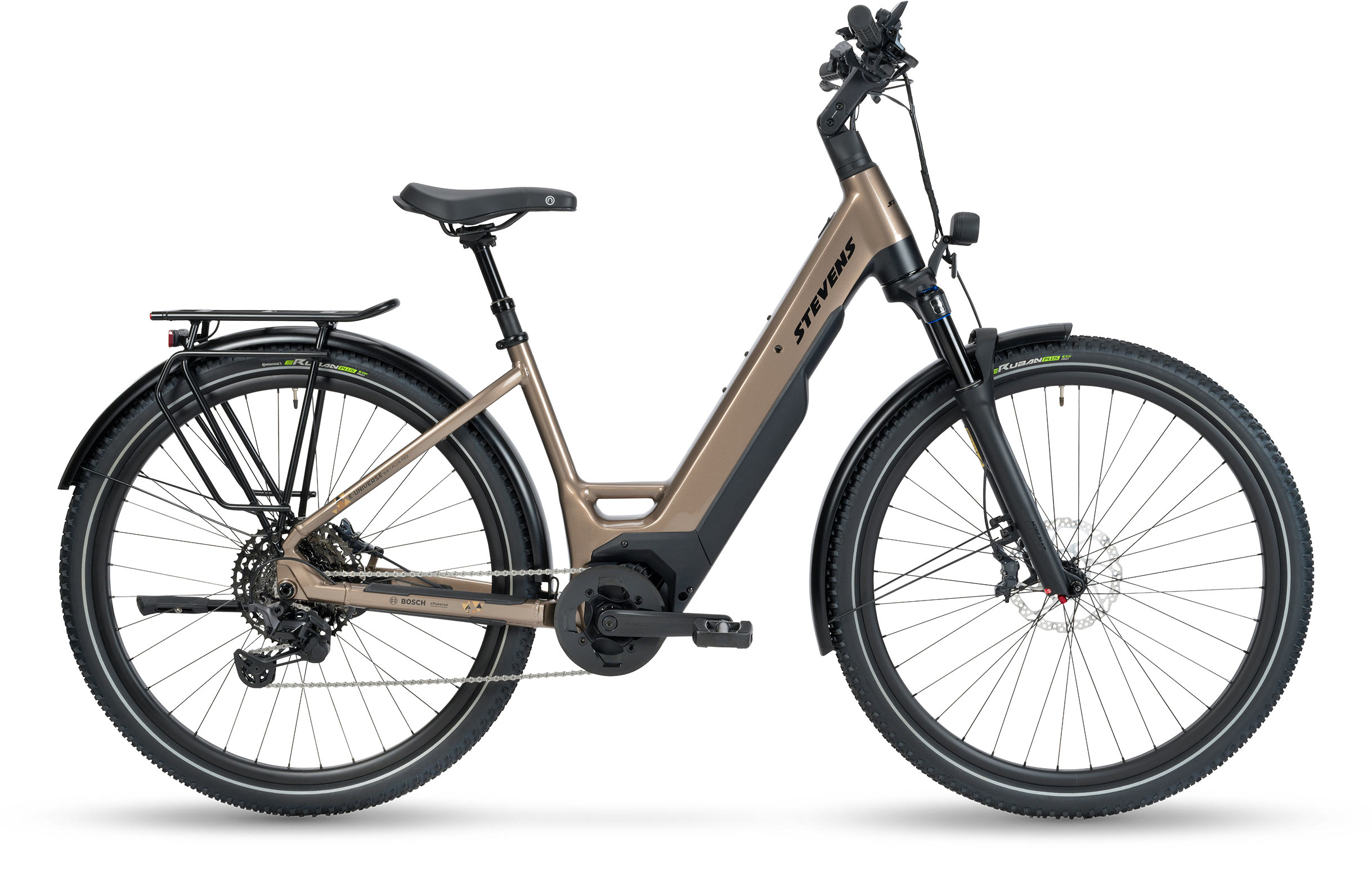

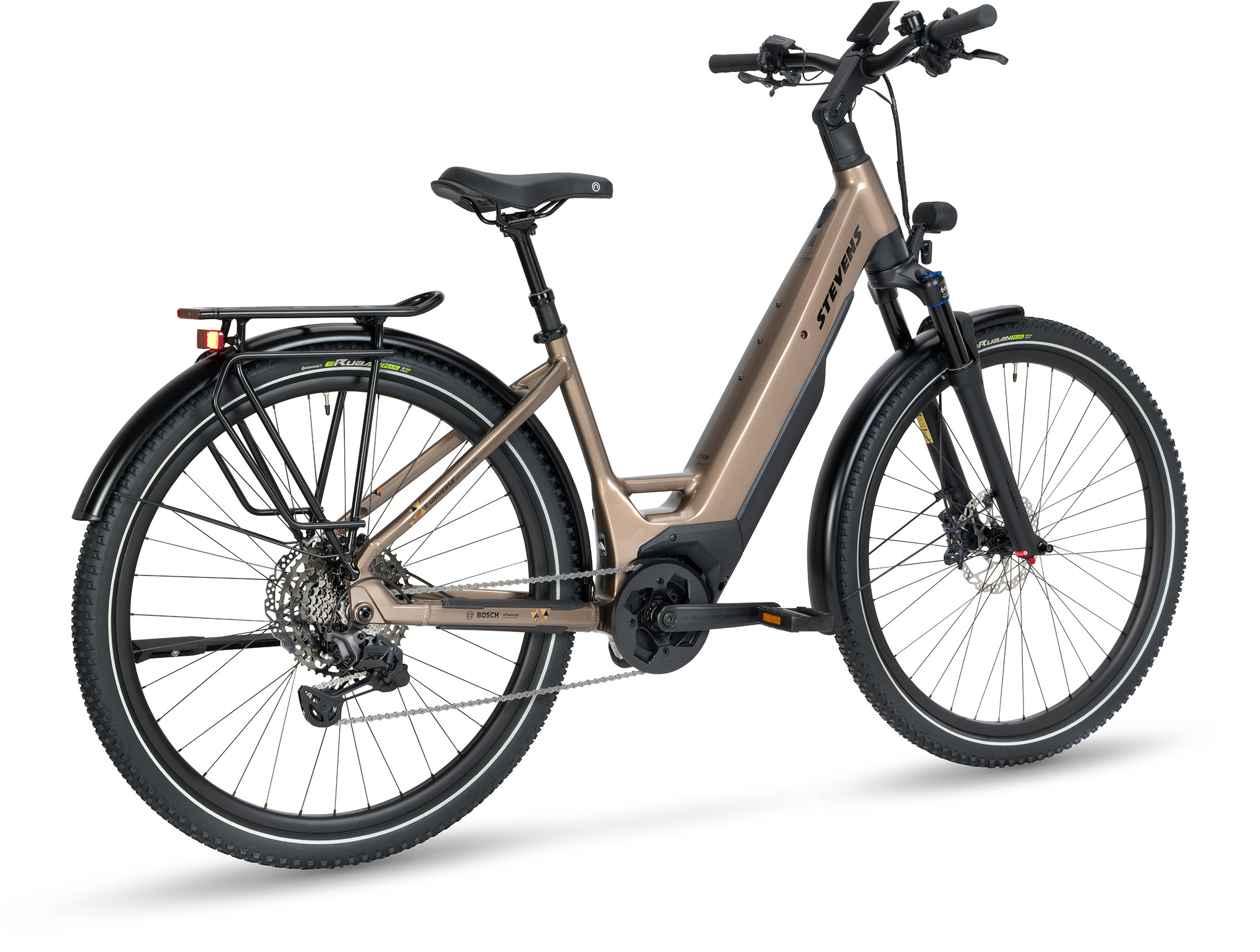

It is the highlight of our E-crossover hardtail range: the E-Universe 9.8.1 Plus FEQ. The bike is based on our innovative E-Trekking and E-Allround frame with approval for a permissible total weight of 180 kilograms as well as trailer operation! It combines some of the best equipment details such as Bosch's G4 Performance Line CX drive unit with 85 Nm of torque and Shimano's high-quality CUES U8000/Deore XT 11-speed shifting components. In addition, there are powerful and finely adjustable disc brakes, also from the high-quality CUES U8000 series. Plus puncture-proof and grippy Continental eRuban Plus MTB tyres. The Bosch 800 Wh PowerPack battery, perfectly housed in the stable down tube, provides superior range, and the extra-stiff Suntour air suspension fork with 100 millimetres of travel provides additional riding stability and safety. The package is rounded off by the complete Fully Equipped FEQ equipment, which includes a powerful 150/260 lux light system from Supernova, effective mudguards, a SNAP IT-compatible luggage rack and a suspended, lowerable Vario seatpost.

Features

• Crossover pedelec w/ sturdy low step-thru frame and 180 kg of gross vehicle weight
• Powerful Bosch G4 Performance Line CX drive unit with 800 Wh battery and large Kiox 500 display
• Shimano Deore XT/CUES U8000 LinkGlide 11-speed shifting and powerful 4/2-piston brakes
• Extra stiff SR Suntour suspension fork & 54mm wide Continental eRuban Plus MTB tires
• Full high-quality specification up to Supernova lighting system with high beam/brake light & suspension dropper seat post

Specifications

• Frame: Aluminium 6061 DB
• Fork: SR Suntour Mobie34-Air
• Headset: Acros Blocklock Taper 1 1/8"-1 1/2"
• Brake front: Shimano CUES U8000
• Brake rear: Shimano CUES U8000
• Brake disc: Shimano SM-RT54
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS G4
• Derailleur rear: Shimano Deore XT Shadow
• Chain: Shimano CN-LG500
• Cassette: Shimano CS-LG700-11
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch G4 Performance Line CX
• Battery: Bosch PowerPack 800
• Charger: Bosch 4A charger
• Hubs rear: Strummer M42-3
• Hubs front: Strummer G15-3
• Rims: Oxygen RM-T25 Disc
• Tires: Continental eRuban Plus
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal ON Male
• Seatpost: Oxygen E-Scorpo DPR-S-E
• Shift lever right: Shimano CUES U8000
• Brake lever: Shimano CUES U8000
• Display: Bosch Kiox 500
• Headlight: Supernova M99 Mini Pro-25
• Taillight: Supernova M99 TL 3 MAX
• Carrier: Racktime Supernova RTA rear rack
• Mudguards: Curana Apollo mudguards
• Kickstand: STEVENS Edge
• Bell: STEVENS D85 bell
• Weight: 28.2 kg
• Max. Rider's weight: 180 kg
• Color(s): Honey Brown
• Sizes: F 46, 52, 56, 60 cm

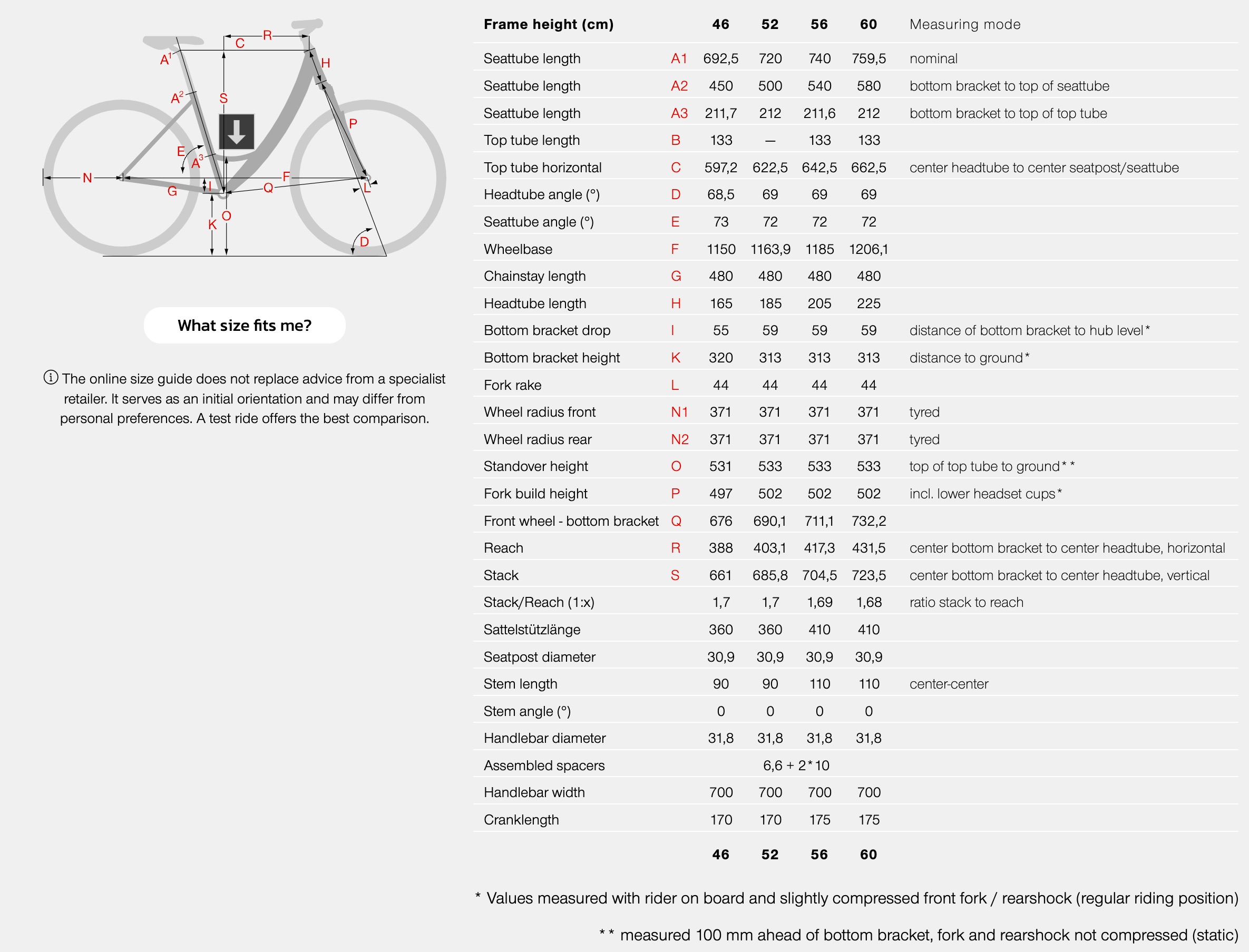

Geometry
